gridpack::powerflow::PFFactoryModule Class Reference

#include <pf_factory_module.hpp>

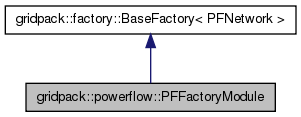

Inheritance diagram for gridpack::powerflow::PFFactoryModule:

[legend]

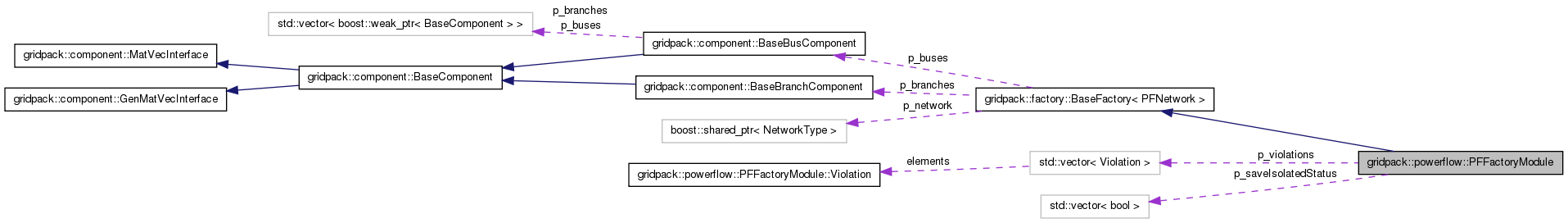

Collaboration diagram for gridpack::powerflow::PFFactoryModule:

[legend]

List of all members.

Classes
struct	Violation
Public Member Functions
	PFFactoryModule (NetworkPtr network)
	~PFFactoryModule ()
void	setYBus (void)
void	setSBus (void)
void	updatePg (int busID, std::string genID, double value)
void	updateQg (int busID, std::string genID, double value)
void	setPQ (void)
bool	checkLoneBus (std::ofstream *stream=NULL)
void	clearLoneBus ()
void	setVoltageLimits (double Vmin, double Vmax)
bool	checkVoltageViolations ()
bool	checkVoltageViolations (int area)
bool	checkQlimViolations ()
bool	checkQlimViolations (int area)
void	clearQlimViolations ()
void	ignoreVoltageViolations ()
void	clearVoltageViolations ()
bool	checkLineOverloadViolations ()
bool	checkLineOverloadViolations (int area)
bool	checkLineOverloadViolations (std::vector< int > &bus1, std::vector< int > &bus2, std::vector< std::string > &tags, std::vector< bool > &violations)
void	ignoreLineOverloadViolations ()
void	clearLineOverloadViolations ()
void	resetVoltages ()
void	scaleGeneratorRealPower (double scale, int area, int zone)
void	scaleLoadPower (double scale, int area, int zone)
double	getTotalLoadRealPower (int area, int zone)
void	getGeneratorMargins (int area, int zone, double *total, double *pmin, double *pmax)
void	resetPower ()
void	setRTPRParams (int src_area, int src_zone, int load_area, int load_zone, double gen_scale, double load_scale)
std::vector< Violation >	getViolations ()
void	clearViolations ()
void	useRateB (bool flag)

---

Constructor & Destructor Documentation

gridpack::powerflow::PFFactoryModule::PFFactoryModule

(

NetworkPtr

network

)

Basic constructor

Parameters:

network,:

network associated with factory

gridpack::powerflow::PFFactoryModule::~PFFactoryModule

(

)

Basic destructor

---

Member Function Documentation

bool gridpack::powerflow::PFFactoryModule::checkLineOverloadViolations	(	std::vector< int > &	bus1,
		std::vector< int > &	bus2,
		std::vector< std::string > &	tags,
		std::vector< bool > &	violations
	)

bool gridpack::powerflow::PFFactoryModule::checkLineOverloadViolations

(

int

area

)

bool gridpack::powerflow::PFFactoryModule::checkLineOverloadViolations

(

)

Check to see if there are any line overload violations in the network. The last call checks for overloads on specific lines.

Parameters:

	area	only check for voltage violations in this area
	bus1	original index of "from" bus for branch
	bus2	original index of "to" bus for branch
	tags	line IDs for individual lines
	violations	true if violation detected on branch, false otherwise

Returns:

true if no violations found

bool gridpack::powerflow::PFFactoryModule::checkLoneBus

(

std::ofstream *

stream = NULL

)

Check for lone buses in the system. Do this by looking for buses that have no branches attached to them or for whom all the branches attached to the bus have all transmission elements with status false (the element is off). Set status of bus to isolated so that it does not contribute to powerflow matrix

Parameters:

stream

optional stream pointer that can be used to print out IDs of isolated buses

Returns:

false if there is an isolated bus in the network

bool gridpack::powerflow::PFFactoryModule::checkQlimViolations

(

int

area

)

bool gridpack::powerflow::PFFactoryModule::checkQlimViolations

(

)

Check to see if there are any Q limit violations in the network

Parameters:

area

only check for Q limit violations in this area

Returns:

true if no violations found

bool gridpack::powerflow::PFFactoryModule::checkVoltageViolations

(

int

area

)

bool gridpack::powerflow::PFFactoryModule::checkVoltageViolations

(

)

Check to see if there are any voltage violations in the network

Parameters:

area

only check for voltage violations in this area

Returns:

true if no violations found

void gridpack::powerflow::PFFactoryModule::clearLineOverloadViolations

(

)

Clear "ignore" parameter on all lines

void gridpack::powerflow::PFFactoryModule::clearLoneBus

(

)

Set lone buses back to their original status.

void gridpack::powerflow::PFFactoryModule::clearQlimViolations

(

)

Clear changes that were made for Q limit violations and reset system to its original state

void gridpack::powerflow::PFFactoryModule::clearViolations

(

)

Clear violation vector

void gridpack::powerflow::PFFactoryModule::clearVoltageViolations

(

)

Clear "ignore" parameter on all buses

void gridpack::powerflow::PFFactoryModule::getGeneratorMargins	(	int	area,
		int	zone,
		double *	total,
		double *	pmin,
		double *	pmax
	)

Return the current real power generation and the maximum and minimum total power generation for all generators in the zone. If zone is less than 1 then return values for all generators in the area

Parameters:

	area	index of area
	zone	index of zone
	total	total real power generation
	pmin	minimum allowable real power generation
	pmax	maximum available real power generation

double gridpack::powerflow::PFFactoryModule::getTotalLoadRealPower	(	int	area,
		int	zone
	)

Return the total real power load for all loads in the zone. If zone less than 1, then return the total load for the area

Parameters:

	area	index of area
	zone	index of zone

Returns:

total load

std::vector<Violation> gridpack::powerflow::PFFactoryModule::getViolations

(

)

Return vector describing all violations

Returns:

violation vector

void gridpack::powerflow::PFFactoryModule::ignoreLineOverloadViolations

(

)

Set "ignore" parameter on all lines with violations so that subsequent checks are not counted as violations

void gridpack::powerflow::PFFactoryModule::ignoreVoltageViolations

(

)

Set "ignore" parameter on all buses with violations so that subsequent checks are not counted as violations

void gridpack::powerflow::PFFactoryModule::resetPower

(

)

Reset power of loads and generators to original values

void gridpack::powerflow::PFFactoryModule::resetVoltages

(

)

Reinitialize voltages

void gridpack::powerflow::PFFactoryModule::scaleGeneratorRealPower	(	double	scale,
		int	area,
		int	zone
	)

Scale generator real power. If zone less than 1 then scale all generators in the area

Parameters:

	scale	factor to scale real power generation
	area	index of area for scaling generation
	zone	index of zone for scaling generation

void gridpack::powerflow::PFFactoryModule::scaleLoadPower	(	double	scale,
		int	area,
		int	zone
	)

Scale load real power. If zone less than 1 then scale all loads in the area

Parameters:

	scale	factor to scale load real power
	area	index of area for scaling load
	zone	index of zone for scaling load

Returns:

false if there is not enough capacity to change generation by requested amount

void gridpack::powerflow::PFFactoryModule::setPQ

(

void

)

Create the PQ

void gridpack::powerflow::PFFactoryModule::setRTPRParams	(	int	src_area,
		int	src_zone,
		int	load_area,
		int	load_zone,
		double	gen_scale,
		double	load_scale
	)

Set parameters for real time path rating diagnostics

Parameters:

	src_area	generation area
	src_zone	generation zone
	load_area	load area
	load_zone	load zone
	gen_scale	scale factor for generation
	load_scale	scale factor for loads

void gridpack::powerflow::PFFactoryModule::setSBus

(

void

)

Make SBus vector

void gridpack::powerflow::PFFactoryModule::setVoltageLimits	(	double	Vmin,
		double	Vmax
	)

Set voltage limits on all buses

Parameters:

	Vmin	lower bound on voltages
	Vmax	upper bound on voltages

void gridpack::powerflow::PFFactoryModule::setYBus

(

void

)

Create the admittance (Y-Bus) matrix

void gridpack::powerflow::PFFactoryModule::updatePg	(	int	busID,
		std::string	genID,
		double	value
	)

Update pg of specified bus element based on their genID

Parameters:

	name
	busID
	genID
	value

void gridpack::powerflow::PFFactoryModule::updateQg	(	int	busID,
		std::string	genID,
		double	value
	)

void gridpack::powerflow::PFFactoryModule::useRateB

(

bool

flag

)

User rate B parameter for line overload violations

Parameters:

flag

if true, use RATEB parameter

---

The documentation for this class was generated from the following file:

• pf_factory_module.hpp
